The sheet molding compound machine is a special equipment for producing SMC sheets, and it is widely used in the fields of automobile, construction, electrical, aerospace, etc. SMC sheet is a composite material composed of resin, glass fiber, filler, and additives, with excellent properties such as high strength, light weight, and corrosion resistance. The SMC sheet machine’s core components determine the sheet’s quality and production efficiency. This article will detail the SMC sheet machine’s core components and functions.
1. Resin metering and mixing system
The resin metering and mixing system is one of the key components of the SMC sheet machine, which is mainly responsible for the precise metering and uniform mixing of raw materials such as resin, filler, additives, etc. The system usually includes the following parts:
-Resin storage tank: used to store resin raw materials, usually equipped with heating and stirring devices to ensure the fluidity of the resin.
-Filler storage tank: used to store fillers (such as calcium carbonate, talcum powder, etc.), usually equipped with a vibration device to prevent fillers from agglomerating.
-Additive metering system: used to accurately meter various additives (such as curing agent, thickener, pigment, etc.) to ensure the performance and appearance of the sheet.
-Mixer: fully mix the resin, filler, and additives to form a uniform resin paste. The mixer is usually designed with a high shear force to ensure the mixing effect.
2. Glass fiber cutting and dispersing system
Glass fiber is the primary reinforcing material of SMC sheet, and its cutting and dispersing system directly affects the mechanical properties of the sheet. The system mainly includes:
-Glass fiber yarn rack: used to store glass fiber yarn, usually equipped with a tension control device to ensure a continuous fiber supply.
-Cutter: Cut the continuous glass fiber yarn into the required length (usually 25-50mm). The cutter usually adopts a rotating blade design to ensure cutting accuracy.
-Dispersing device: Disperse the cut glass fiber evenly in the resin paste. The dispersing device usually adopts airflow or mechanical vibration to ensure the uniform distribution of the fiber.
3. Sheet forming system
The sheet forming system is the core component of the SMC sheet machine, and it is responsible for creating mixed resin paste and glass fiber into sheets. The system mainly includes:
-Conveyor belt: used to carry and convey resin paste and glass fiber. The conveyor belt is usually made of corrosion-resistant and high-temperature resistant materials to ensure long-term stable operation.
-Calendering roller: calenders the resin paste and glass fiber into sheets of uniform thickness. The calendering roller is usually precision-processed to ensure the thickness and flatness of the sheet.
-Scraper: used to adjust the thickness and surface quality of the sheet. The scraper is usually adjustable to accommodate sheets with different thicknesses and surface requirements.
4. Curing and winding system
The curing and winding system is responsible for curing and winding the formed sheet for subsequent processing and use. The system mainly includes:
-Curing furnace: used for thermal curing of the sheet, usually by electric heating or gas heating. The temperature and time of the curing furnace can be precisely controlled to ensure the curing effect of the sheet.
-Cooling device: cools the cured sheet to prevent deformation and shrinkage. The cooling device usually uses air cooling or water cooling to ensure the cooling effect.
-Winding machine: winds up the cooled sheet for storage and transportation. The winding machine is usually equipped with a tension control device to ensure the tightness and flatness of the winding.
5. Control system
The control system is the brain of the SMC sheet machine, responsible for the automatic control and monitoring of the entire production process. The system mainly includes:
-PLC controller: used to control the operation of each component, usually equipped with a touch screen operation interface, so that operators can set parameters and monitor.
-Sensor: used to monitor various parameters (such as temperature, pressure, speed, etc.) in real time during the production process, and feed the data back to the PLC controller.
-Human-machine interface: used to display production data and alarm information, usually equipped with a touch screen and indicator light so that operators can perform real-time monitoring and troubleshooting.
6. Auxiliary system
The auxiliary system is an essential part of the SMC sheet machine, mainly including:
-Vacuum system: used to remove bubbles in the resin paste to ensure the density and uniformity of the sheet.
-Cleaning system: used to clean the waste and residues generated during the production process to ensure the equipment’s cleanliness and long-term stable operation.
-Safety system: used to ensure the safety of operators, usually including emergency stop buttons, protective covers, alarm devices, etc.

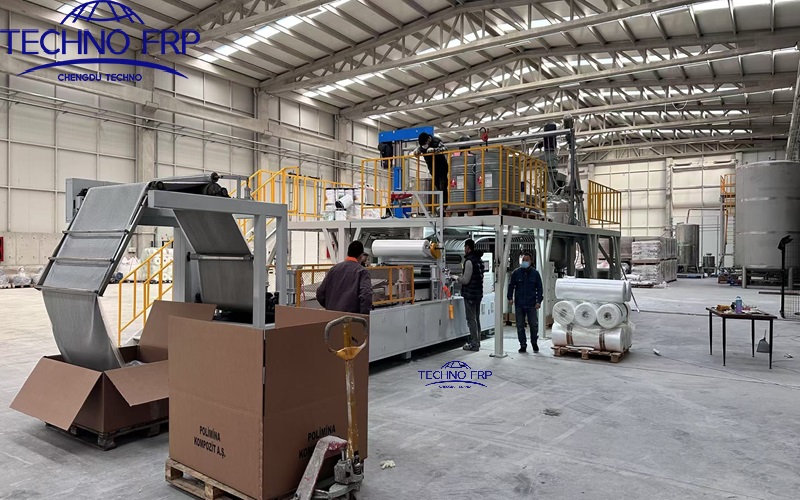

The core components of the SMC sheet machine production line include a resin metering and mixing system, a glass fiber cutting and dispersing system, a sheet forming system, a curing and winding system, a control system, and an auxiliary system. These components work together to ensure high-quality and efficient production of SMC sheets. With the continuous advancement of technology, the core components of SMC sheet machines are also being optimized and upgraded to meet the growing market demand and technical requirements. As a professional SMC sheet machine factory in China, TechnoFRP provides high-quality SMC sheet machine production lines. If you need anything, please get in touch with us.
